Perfec Mat Rubber Hinge Grate

This is where style and function come together. Aluminum rails combined with your choice of insert colors and materials create a durable, visually attractive solution for any commercial entrance. A variety of aluminum profiles are available for both flat surface and recessed installations. Each project is highly customizable and quoted individually. Priced at $20 and up per square foot, this system offers one of the best long-term investments in entryway matting due to its strength, drainage capability, and appearance.

For more details on compatible frame options, view our Recessed Mat Installation Options.

Features

• Model: Perfec Mat Rubber Hinge
• Thickness: 3/8"

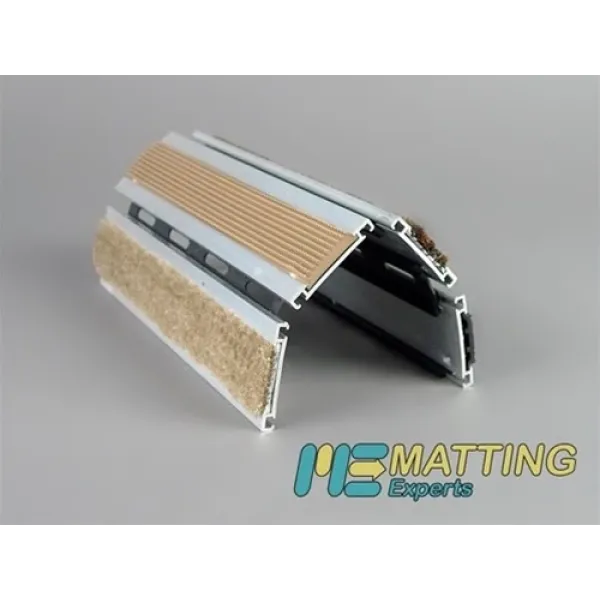

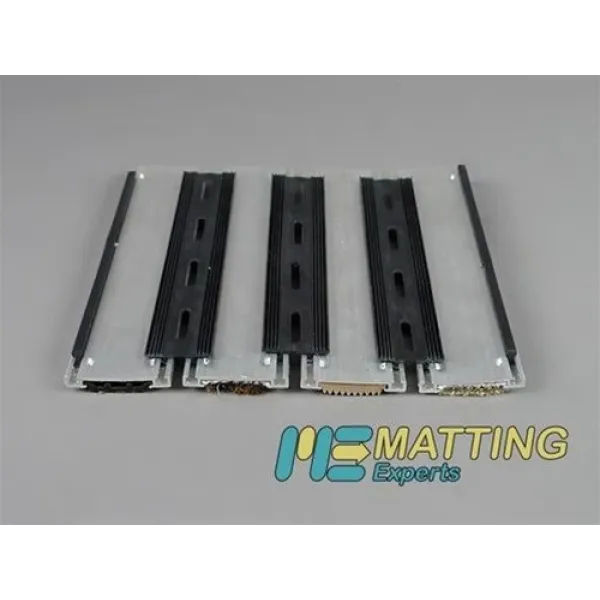

• Construction: Aluminum rails spaced 2" on center with polyprene thermoplastic rubber hinges and 1" x 3/16" slotted drainage holes
• Rail Material: 6063-T6 Aluminum

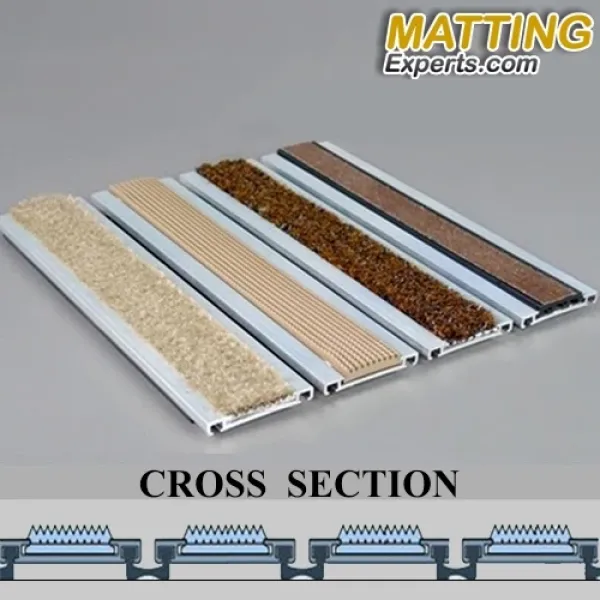

• Insert Options: Carpet, Brush, Vinyl, Abrasive Vinyl
• Rolling Load: 300 lbs. per wheel (tested)
• Filler Strip Width: 1 3/16"

Compatible Frames

Frame 544 & 535 (Flat Surface Installation)

Edges in red (vinyl on the left and aluminum on the right) are optional and must be specified when ordering.

Frame 540, 548 & 551 (Recessed Installation)

Installation Guides

• Recessed Frame #540 Installation Guide
• Recessed Frame #548 Installation Guide
• Recessed Frame #551 Installation Guide

Color Options

Perfec Mat Insert Colors

Aluminum Finish Options

Anodized aluminum is treated through an electrolytic process that strengthens the metal and adds corrosion resistance. Standard finishes include Clear, Bronze, and Black. All mats are also available in standard “Mill” (un-anodized) finish.

Product Video

Manufacturer:
