EM-650 Grate

Name: EM-650 Grate
Brand: Pawling
SKU: EM-650
Availability: OutOfStock

Product Code: EM-650SKU: EM-650

Request a Quote

The EM-650 Rol-Dek recessed entrance grate uses aluminum rails and quiet vinyl hinges to trap dirt, water, and debris. Built for high-traffic indoor and covered outdoor entries, it lifts easily for cleaning.

Thickness (Height): 7/16” – Allows water, dirt, and debris to accumulate beneath the surface, making cleaning fast and efficient
Custom Fabrication: Custom fabrication is available (including angles, arcs/radii, and cutouts). Large openings may be supplied in sections per shop drawings
Heel-Proof Design: The 3/16-inch gap between treads helps prevent heels from getting stuck while allowing effective drainage of dirt and water. Treads are spaced at 1-7/8” centers

Easy returns Fast shipping

Description

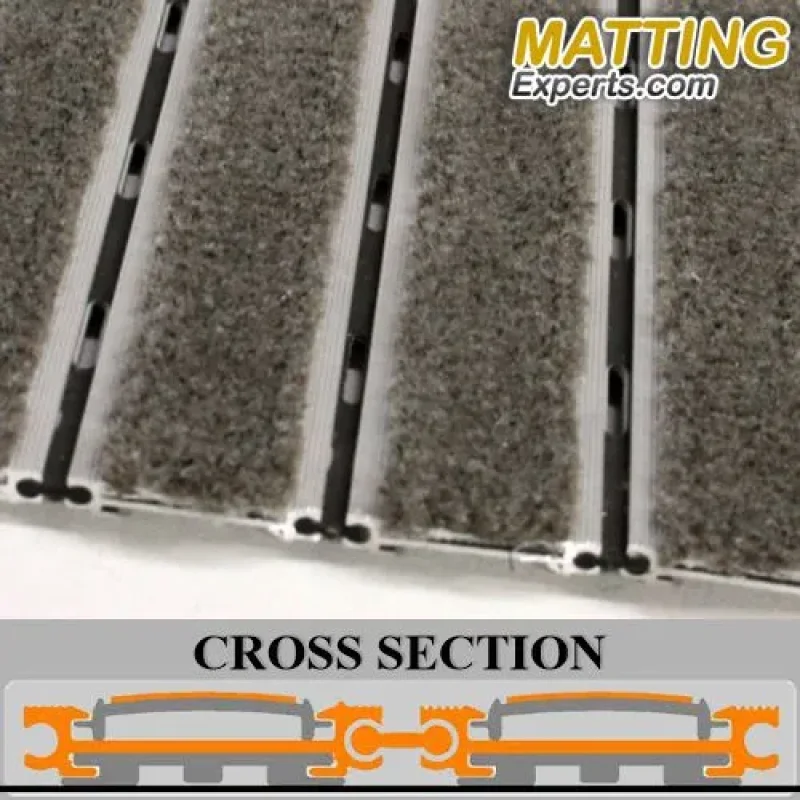

EM-650 Rol-Dek Recessed Entryway Grate – Durable & Easy-to-Clean Entrance Matting

The EM-650 Rol-Dek recessed entryway grate is a strong solution for high traffic interior entrances and covered exterior environments, such as office lobbies, employee entrances, and commercial buildings. Designed for durability, it features aluminum tread rails connected by a quiet perforated vinyl hinge to help reduce clatter. The mat's recessed design helps trap dirt, debris, and water, keeping indoor spaces cleaner.

Key Features:

Thickness (Height): 7/16” – Allows water, dirt, and debris to accumulate beneath the surface, making cleaning fast and efficient.
Custom Fabrication: Custom fabrication is available (including angles, arcs/radii, and cutouts). Large openings may be supplied in sections per shop drawings.
Heel-Proof Design: The 3/16-inch gap between treads helps prevent heels from getting stuck while allowing effective drainage of dirt and water. Treads are spaced at 1-7/8” centers.
Rolling Load Capacity: Tested to 350 lbs per wheel (5” diameter, 2” wide wheel).
Durable Rail Material: Aluminum tread rails with a continuous resilient vinyl cushion to help reduce clatter and improve contact with the substrate.
Rail Finish Options: Mill, Clear Anodized, Medium Bronze Anodized, Black Anodized.
All-Weather Application: Designed to withstand dirt, water, and debris, this mat helps prevent outdoor elements from being tracked indoors (ideal for covered exterior entries).
Easy Cleaning & Maintenance: Simply lift the mat to clean the recessed area. A hose and firm brush can efficiently clean both the mat and its surroundings. The mat's 180-degree roll-back feature provides quick access for thorough cleaning.

Upgrade your commercial entrance with the EM-650 Rol-Dek Recessed Entryway Grate. It’s designed for maximum durability, efficient drainage, and easy maintenance, ensuring a clean and safe entryway.

Order Your Entryway Mat Today! Contact Matting Experts for custom sizing and color options.

Note: On-screen color may vary. Request physical or emailed swatches before ordering.

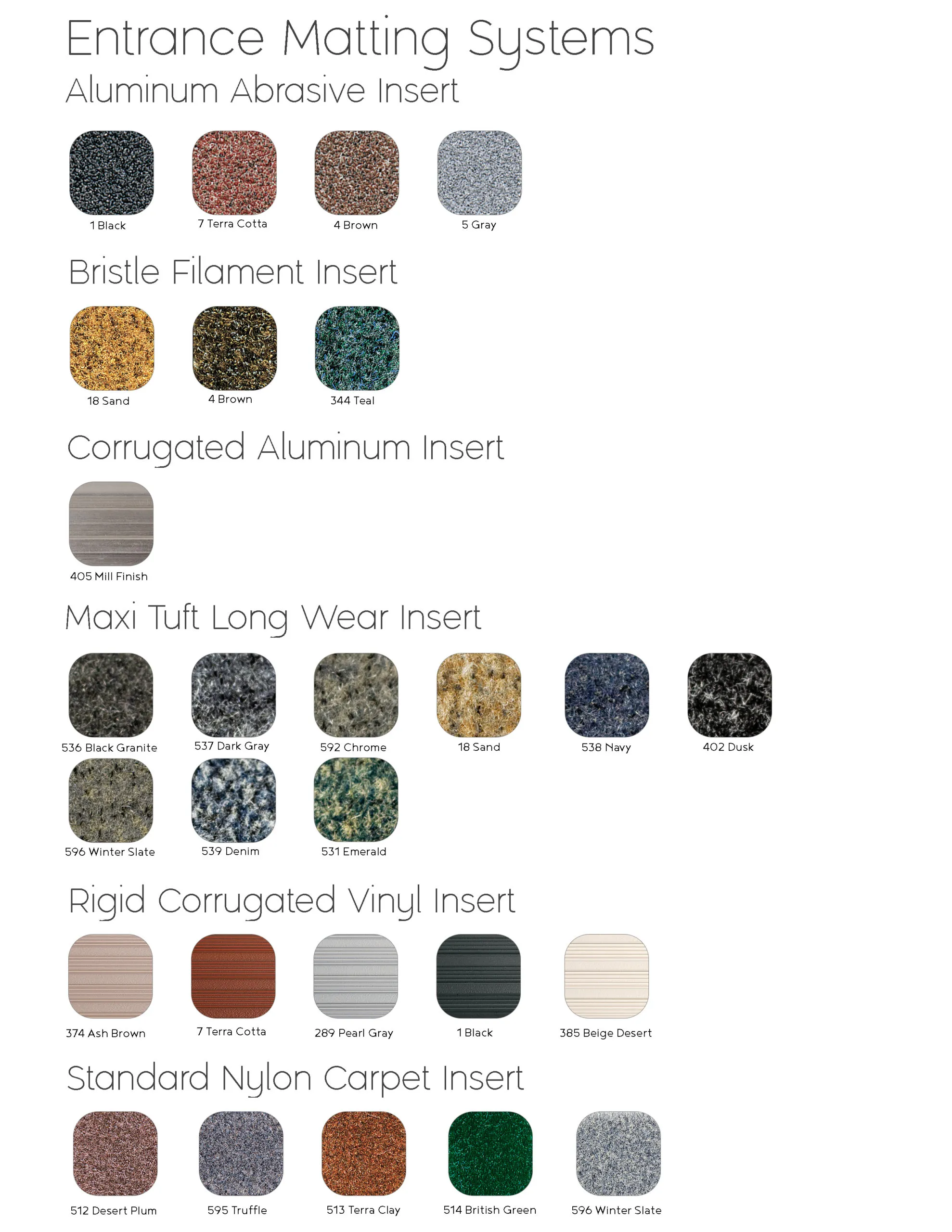

EM-650 tread insert options color chart (click to enlarge) — Click the chart to open the full-size image in a new tab (you can zoom and pan).

Tread Insert: Maxi-Tuft Long Wear (MLW)

Maxi-Tuft Long Wear inserts are made from spaced-dyed, 100% polyamide nylon with tetra-lobal fibers. They feature a density of 30 oz/sq. yd and are fusion bonded to a two-ply backing. These inserts are designed for durability and include anti-stain, anti-static, and anti-microbial treatments.

Tread Insert: Rigid Corrugated Vinyl (RCV)

Rigid Corrugated Vinyl (RCV) inserts are made from rigid vinyl extrusion with a corrugated surface to improve slip resistance in demanding environments. They are UV-stabilized for color retention and are available in several standard colors from the manufacturer.

Tread Insert: Corrugated Aluminum (CA)

Corrugated Aluminum (CA) inserts are made from extruded aluminum alloy 6105-T5. The all-metal design features a corrugated surface that enhances slip resistance. Available in mill finish (natural aluminum color).

Tread Insert: Abrasive Aluminum (AA)

Abrasive Aluminum (AA) inserts are constructed from alloy 6105-T5 extruded aluminum with a factory-applied medium-grit abrasive for maximum slip resistance. These are ideal for entrances where grip and durability are essential. The aluminum is mill finish, and the abrasive strip is available in several standard colors.

Tread Insert: Bristle Filament (BF)

Bristle Filament (BF) inserts use solution-dyed polypropylene fibers, blending 600/12-denier multifilament and 595/D1 monofilament for durability and cleaning performance. These waterproof, UV-resistant inserts are designed for excellent outdoor and indoor use in all climates.

DESCRIPTION:

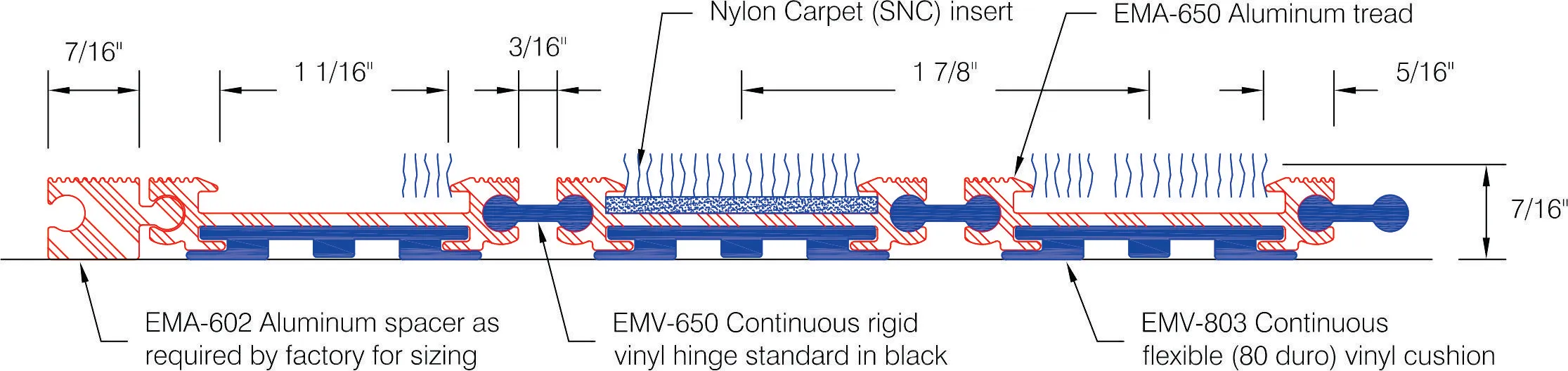

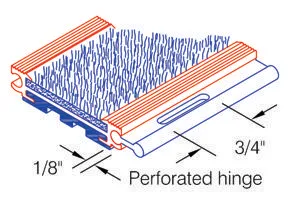

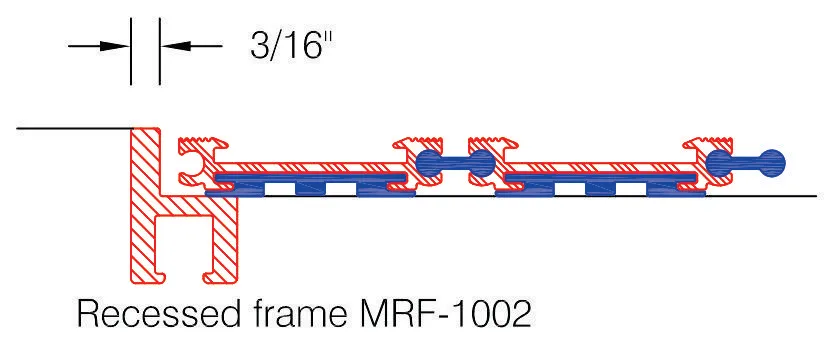

The EM-650 Rol-Dek is constructed with aluminum tread rails connected by a continuous rigid vinyl hinge that is perforated to facilitate effective drainage. A continuous flexible vinyl cushion is included to help reduce clatter and improve contact with the substrate.

The treads are spaced with a consistent 3/16" gap between them, and are positioned at 1-7/8" centers.

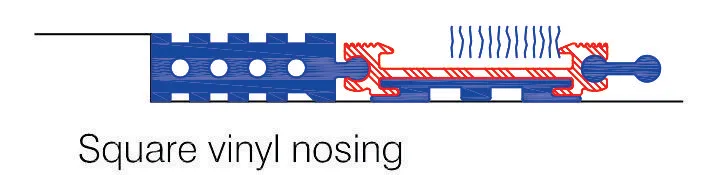

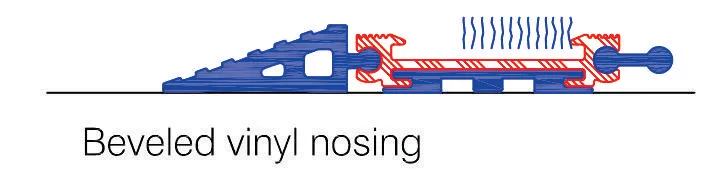

Because the tread and hinge widths are fixed, the final mat width may slightly exceed the specified dimensions. An optional vinyl nosing is available and can be trimmed to fit during installation. Trimming is easily done on-site with a sharp utility knife.
