Description

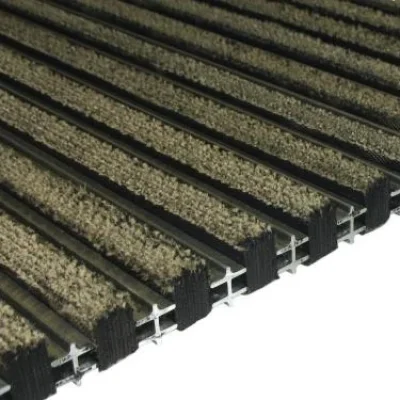

EM-70 Series Drain-Well Grates

Durable and reversible aluminum entrance mats designed for indoor use in light to heavy traffic areas. Ideal for commercial and institutional facilities such as schools, hospitals, office buildings, restaurants, and more. Each mat is constructed with moisture-absorbing recycled rubber inserts—made from repurposed airplane tires—for exceptional longevity. Flip the mat to extend its life and simplify maintenance.

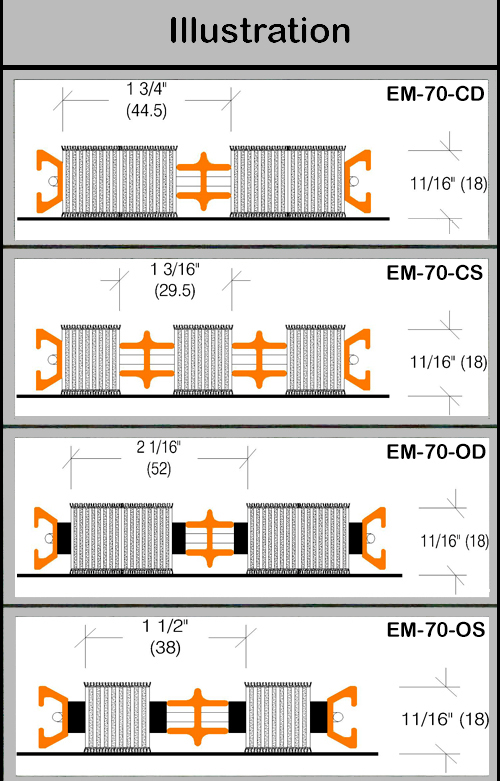

Model	Construction
EM-70-CD	Closed construction with double rubber insert
EM-70-CS	Closed construction with single rubber insert
EM-70-OD	Open construction with double rubber insert
EM-70-OS	Open construction with single rubber insert

Features

• Thickness: 11/16"
• Panel Size: Max 96" wide x 26" long
• Rail Material: 6063-T6 aluminum alloy with 20% recycled content, clear or anodized finish options
• Rubber Inserts: Made from 100% post-consumer recycled airplane tires with buffed nylon surfaces
• Moisture Absorption:
  - Wet: 2.95 oz/ft² (898.13 g/m²)
  - After 1 hour: 2.70 oz/ft² (821.88 g/m²)
  - After 24 hours: 0.51 oz/ft² (156.41 g/m²)
• Reversible: Flip the mat to extend service life
• Heel-Proof Design: 3/16" gap between treads keeps heels safe and debris hidden
• All-Weather Performance: Excellent for outdoor applications with debris-trapping and water-resistant design
• Easy to Clean: Surface and open construction options for fast debris removal and maintenance

Description & Frame Options

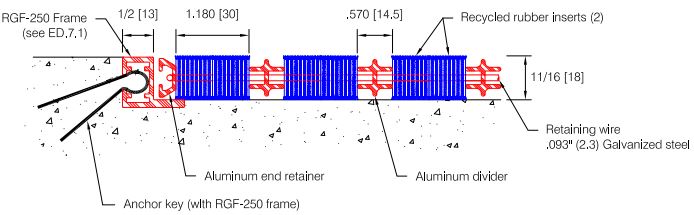

Panel Construction: EM-70-CD
Closed construction with double recycled rubber inserts, assembled on .093" galvanized steel wire (1.496" spacing). Optional crossbeam support system for high-load areas. Manufactured 3/16" undersize for proper fit. Mats over 16 ft² may be sectioned.

Available Frames for EM-70-CD:

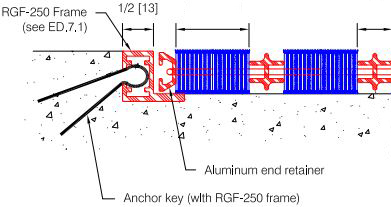

RGF-250 – Mill, Clear, Bronze, or Black Anodized


SSF-250 – Mill, Clear, Bronze, or Black Anodized

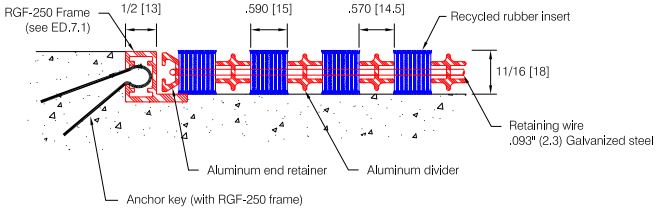

Panel Construction: EM-70-CS
Closed construction with single rubber insert. Same wire assembly and manufacturing specs as EM-70-CD.

Available Frames:

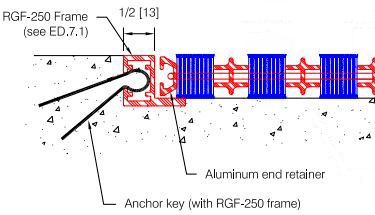

RGF-250 – Mill, Clear, Bronze, or Black Anodized


SSF-250 – Mill, Clear, Bronze, or Black Anodized

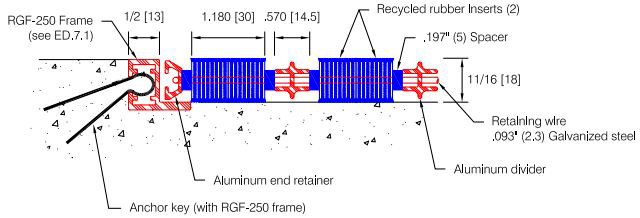

Panel Construction: EM-70-OD
Open construction with double rubber inserts; dirt falls between rails. Galvanized wire and crossbeam support system optional. Manufactured 3/16" undersize.

Available Frames:

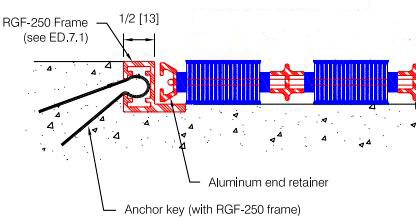

RGF-250 – Mill, Clear, Bronze, or Black Anodized


SSF-250 – Mill, Clear, Bronze, or Black Anodized

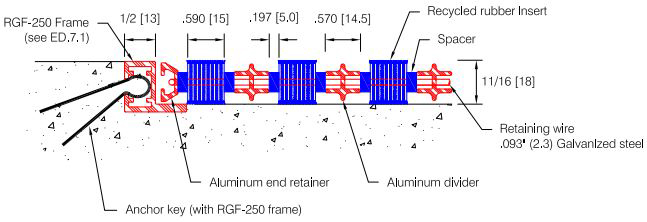

Panel Construction: EM-70-OS
Open construction with single rubber insert and 0.197" spacer. Same wire and assembly specs as other models. Sectioning required over 16 ft².

Available Frames:

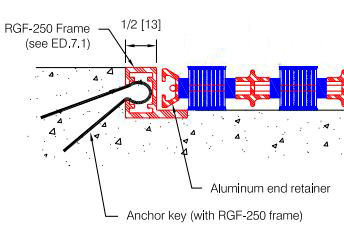

RGF-250 – Mill, Clear, Bronze, or Black Anodized

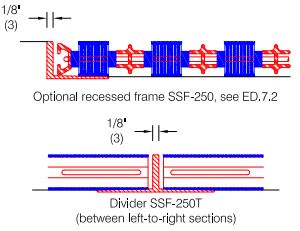

SSF-250 – Mill, Clear, Bronze, or Black Anodized

Manufacturer: Pawling Corporation
