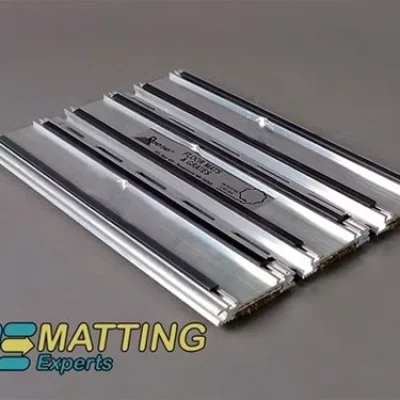

Perfec Mat Aluminum Hinge

Name: Perfec Mat Aluminum Hinge
Brand: Reese Enterprises
SKU: R01-PerfecMatAluminum
Availability: OutOfStock

0 reviews · Write a review

Product Code: R01-PerfecMatAluminumSKU: R01-PerfecMatAluminum

Request a Quote

This is where style and function come together. Aluminum rails paired with your choice of insert color and material create a durable, visually attractive solution for any entrance.

Aluminum rails combine durability with a clean architectural appearance
Choose carpet, brush, vinyl, abrasive vinyl, or aluminum inserts
Custom recessed configurations support demanding commercial entrances

Easy returns Fast shipping

Description

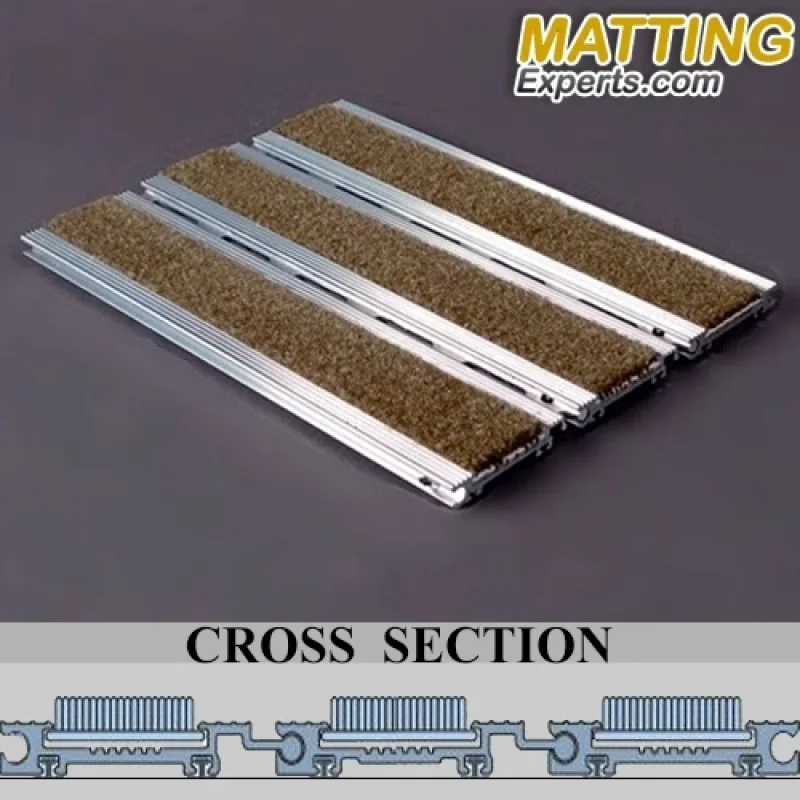

Perfec Mat Aluminum Hinge Grate

This is where style and function come together. Aluminum rails paired with your choice of insert color and material create a durable, visually attractive solution for any entrance. A wide variety of aluminum profiles are available for both flat surface and recessed installations. This highly customizable product is priced from $20 per square foot and up—an excellent investment for commercial spaces prioritizing both longevity and design.

Installation Guides

Features

Model: Perfec Mat Aluminum Hinge
Construction: Aluminum hinge design with 1" x 3/16" slotted holes for maximum drainage
Rail Spacing: Aluminum rails spaced 2" on center
Thickness: 3/8"
Rail Material: Aluminum

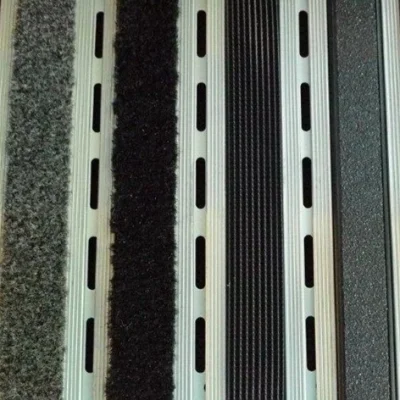

Insert Options: Carpet, Brush, Vinyl, Abrasive Vinyl, or Solid Aluminum
Rolling Load Capacity: 300 lbs. per wheel
Surface or Recessed: Suitable for both flat surface and recessed installations

Compatible Frames

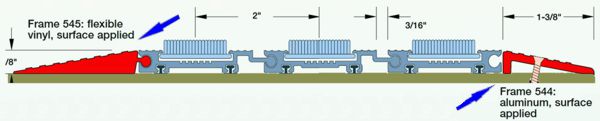

Frame 545 & 544
Reese Perfec Mat aluminum hinge grate 545 and 544

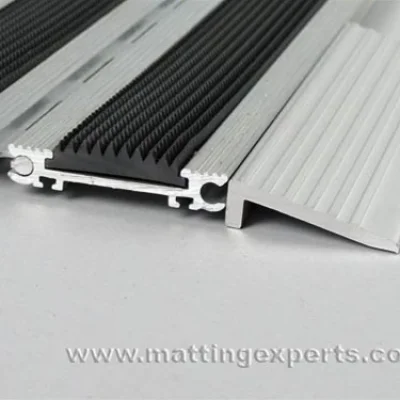

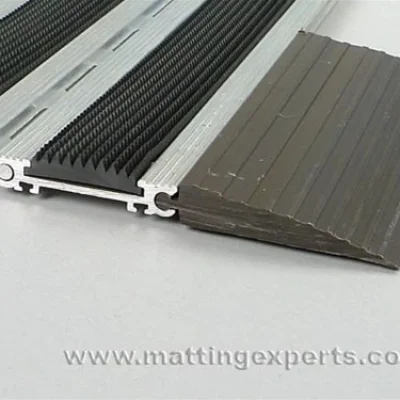

Edges shown in red (rubber on the left and aluminum on the right) are optional and must be specified when ordering.

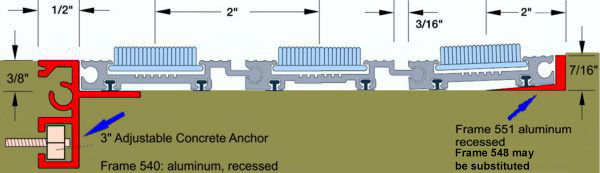

Frame 540 & 551
Reese Perfec Mat aluminum hinge grate 540 and 551

Insert & Rail Finishes

Perfec Grate & Mat Insert Colors:
Reese Perfec Mat color swatch

Aluminum Finishes:
Reese Perfec Mat color swatch aluminum

“Anodized” means the aluminum has been strengthened through an electrolytic oxidation process, forming a protective, corrosion-resistant outer layer. Mats are also available in a standard "Mill" (un-anodized) finish.
