Description

RG-250 Drain-Well Series Entrance Grate

The Pawling RG-250 Drain-Well™ is a high-performance entrance matting system engineered for heavy foot traffic in interior or covered exterior commercial and institutional environments. Its roll-back capability makes it easy to clean and maintain, while the 3/4" thick extruded aluminum rails are designed for durability and performance. This model supports rolling loads up to 1,000 lbs. per wheel.

The construction features a perforated vinyl hinge that connects the rails, helping trap dirt and debris beneath the walking surface for enhanced cleanliness. A variety of tread insert options are available to suit any décor or functional need. With its all-weather capability and exceptional strength, the RG-250 Drain-Well grate is a long-lasting solution for demanding entrance applications.

• Model: RG-250 Drain-Well
• Thickness: 3/4"
• Rail Material: Aluminum (6105-T5 alloy, minimum 70% recycled content)
• Rail Color / Finishes: Mill (standard), Clear Anodized, Medium Bronze Anodized, Black Anodized
• Construction: Perforated vinyl hinge for superior noise control and drainage
• Roll-Back Capability: Yes
• Weight: 3.8 lbs. per sq ft

Key Features

• Efficient Dirt and Moisture Capture: Dirt and water drop below the walking surface, reducing tracking and cleaning frequency.
• Heavy-Duty Performance: Supports rolling loads up to 1,000 lbs. per wheel for use in high-traffic facilities.
• Maximum Panel Size: 144" wide x 96" long. Larger panels may require sectioning for easier handling and reduced damage risk.
• Noise Reduction: Quiet vinyl hinge construction minimizes clatter under foot traffic.
• Heel-Proof Design: 3/16" spacing between treads ensures safety and comfort for all types of footwear.
• All-Weather Use: Suitable for both indoor and covered outdoor applications, effectively trapping moisture, dirt, and debris.
• Easy Maintenance: Roll-up design allows for quick access underneath the mat for sweeping or debris removal.

Tread Insert: Rigid-Back Nylon (SNC)

Rigid-Back Nylon (SNC) inserts are made from solution-dyed 100% nylon carpet with a density of 33.8 oz/sq. yd. The carpet fibers are fusion-bonded to a two-ply backing and treated with anti-stain (Teflon), anti-static, and anti-microbial protection. Ideal for both indoor and outdoor use, these inserts are available in a wide variety of colors.

(511)
Plum Beige

(512)
Desert Plum

(510)
Orchid

(513)
Terra Clay

(514)
British Green

(515)
Harbor Brown

(516)
Mushroom

(517)
Crayon Blue

(518)
Lancaster Gray

(519)
Near Black

(591)
African Violet

(592)
Chrome

(593)
Royal Air Force Blue

(594)
Sugar Plum

(595)
Truffle

(596)
Winter Slate

(38)
Charcoal

Note: On-screen color may vary. Request physical or emailed swatches before ordering.

Tread Insert: Maxi-Tuft Long Wear (MLW)

Maxi-Tuft Long Wear inserts are made from spaced-dyed, 100% polyamide nylon with tetra-lobal fibers. They feature a density of 30 oz/sq. yd and are fusion bonded to a two-ply backing. These inserts are designed for durability and include anti-stain, anti-static, and anti-microbial treatments.

(1)
Black

(38)
Charcoal

Tread Insert: Rigid Corrugated Vinyl (RCV)

Rigid Corrugated Vinyl (RCV) inserts are made from rigid vinyl extrusion with a corrugated surface to improve slip resistance in demanding environments. They are UV-stabilized for color retention and are available in several standard colors from the manufacturer.

(1)
Black

(7)
Terra Cotta

(289)
Pearl Gray

(374)
Ash Brown

(385)
Beige Desert

Tread Insert: Corrugated Aluminum (CA)

Corrugated Aluminum (CA) inserts are made from extruded aluminum alloy 6105-T5. The all-metal design features a corrugated surface that enhances slip resistance. Available in mill finish (natural aluminum color).

(405)
Mill Finish Aluminum

Tread Insert: Abrasive Aluminum (AA)

Abrasive Aluminum (AA) inserts are constructed from alloy 6105-T5 extruded aluminum with a factory-applied medium-grit abrasive for maximum slip resistance. These are ideal for entrances where grip and durability are essential. The aluminum is mill finish, and the abrasive strip is available in several standard colors.

(1)
Black

(4)
Brown

(5)
Gray

(7)
Terra Cotta

Tread Insert: Bristle Filament (BF)

Bristle Filament (BF) inserts use solution-dyed polypropylene fibers, blending 600/12-denier multifilament and 595/D1 monofilament for durability and cleaning performance. These waterproof, UV-resistant inserts are designed for excellent outdoor and indoor use in all climates.

(4)
Brown

(18)
Sand

(38)
Charcoal

(344)
Teal

(519)
Near Black

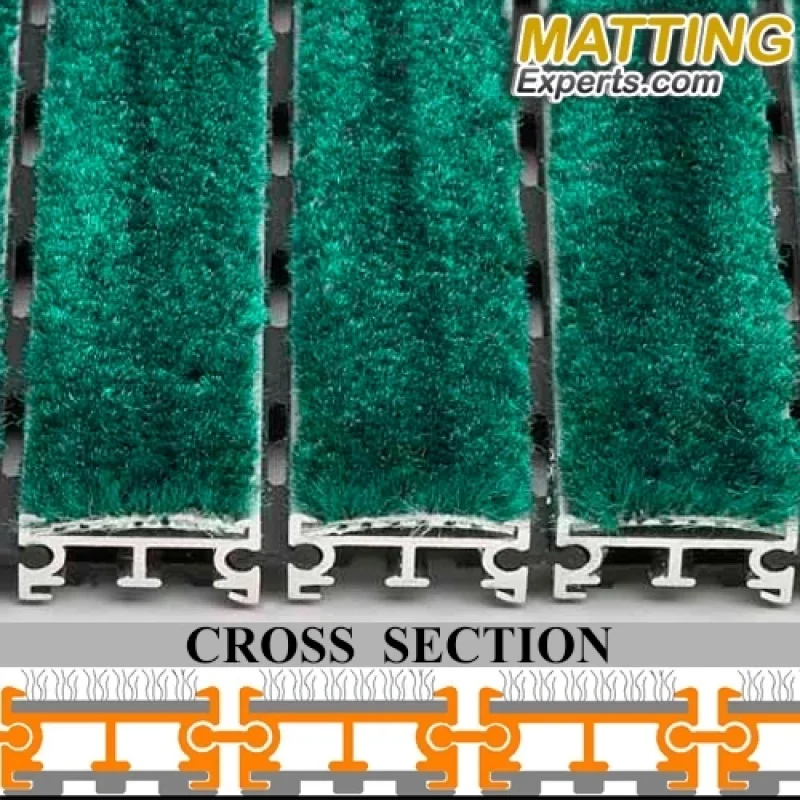

Panel Construction

The RG-250 Drain-Well is constructed with an open design using a perforated vinyl hinge, securely assembled onto a vinyl cushion to reduce noise and enhance drainage. It features:

• Mat Depth: 3/4"
• Insert Material: 100% solution-dyed nylon fiber
• Pile Height: 1/4"
• Density: 33.8 oz/sq. yd
• Rail Construction: Extruded aluminum with optional SSF-250 recessed frame

For best results, the manufacturer recommends providing exact mat opening dimensions. Mats are fabricated 1/4" smaller than the opening to ensure a proper fit. For mat sizes exceeding 48 square feet, factory sectioning may be required to simplify handling and reduce potential damage during shipment and installation.

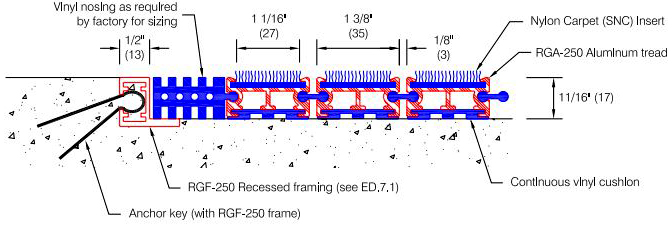

RG-250 Panel Construction Diagram

Frame Options

The following frames are available for use with the RG-250 Drain-Well entrance mat:

Available Frame Profiles: RGF-250 and SSF-250

The vinyl hinge connecting the rails is detailed below to demonstrate how dirt and debris fall beneath the walking surface while maintaining structural integrity:

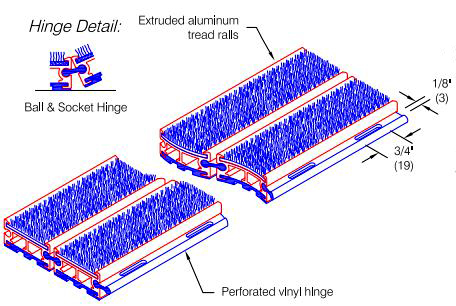

Hinge Detail: Vinyl Hinge Between Aluminum Rails

Manufacturer: Pawling Corporation
