Description

RG-300 and RG-400 Drain-Well Series Entrance Grates

The Pawling RG-300 and RG-400 Drain-Well™ entrance matting systems are engineered for high-traffic commercial and institutional entryways, including interior and covered exterior areas. Both models are built with extruded aluminum box beam rails fastened to support rails spaced 12" on center, using vibration-proof fasteners for maximum durability and strength.

These mats are ideal for pedestrian and cart traffic, offering exceptional debris containment and ease of maintenance. Both the RG-300 and RG-400 are fabricated from at least 70% recycled aluminum and support rolling loads of up to 350 lbs. per wheel (RG-300) and 450 lbs. per wheel (RG-400).

• Model: RG-300; RG-400 Drain-Well
• Thickness: 1-1/2"
• Rail Material: Aluminum (6105-T5 alloy, 70% recycled content)
• Rail Finishes: Mill Finish, Clear Anodized, Medium Bronze Anodized, Black Anodized
• Construction: Box beam rails fastened to support rails, 12" on center, vibration-proof
• Weight: RG-300: 3.5 lbs. / sq. ft.; RG-400: 3.7 lbs. / sq. ft.

Key Features

• High Drainage Capacity: 1-1/2" mat depth allows moisture and debris to fall below the surface for longer-lasting cleanliness.
• Heavy-Duty Performance: Designed to withstand wheeled traffic in demanding commercial environments.
• Maximum Section Size: 144" wide x 96" long. Larger sections may require factory sectioning for handling and durability.
• Eco-Conscious Materials: Constructed from aluminum with minimum 70% recycled content.
• Safe, Heel-Proof Design: 3/16" gap between treads prevents heel trapping while maintaining dirt-trapping capability.
• All-Weather Use: Ideal for both indoor and covered outdoor entries to trap water, dirt, and debris before it enters your building.
• Easy Maintenance: Simply brush, sweep, or roll up to remove accumulated grime beneath the mat surface.

Available Tread Inserts

• Rigid-Back Nylon “SNC” Carpet
• Bristle Filament “BF” Carpet
• Maxi-Tuft Long Wear “MLW” Carpet
• Rigid Corrugated Vinyl “RCV”
• Corrugated Aluminum “CA”
• Abrasive Aluminum “AA”

Note: Scroll down to see color swatches and finish options. Up to 39 combinations of colors and insert types are available.

Tread Insert: Rigid-Back Nylon (SNC)

Rigid-Back Nylon (SNC) inserts are made from solution-dyed 100% nylon carpet with a density of 33.8 oz/sq. yd. The carpet fibers are fusion-bonded to a two-ply backing and treated with anti-stain (Teflon), anti-static, and anti-microbial protection. Ideal for both indoor and outdoor use, these inserts are available in a wide variety of colors.

(511)
Plum Beige

(512)
Desert Plum

(510)
Orchid

(513)
Terra Clay

(514)
British Green

(515)
Harbor Brown

(516)
Mushroom

(517)
Crayon Blue

(518)
Lancaster Gray

(519)
Near Black

(591)
African Violet

(592)
Chrome

(593)
Royal Air Force Blue

(594)
Sugar Plum

(595)
Truffle

(596)
Winter Slate

(38)
Charcoal

Note: On-screen color may vary. Request physical or emailed swatches before ordering.

Tread Insert: Maxi-Tuft Long Wear (MLW)

Maxi-Tuft Long Wear inserts are made from spaced-dyed, 100% polyamide nylon with tetra-lobal fibers. They feature a density of 30 oz/sq. yd and are fusion bonded to a two-ply backing. These inserts are designed for durability and include anti-stain, anti-static, and anti-microbial treatments.

(1)
Black

(38)
Charcoal

Tread Insert: Rigid Corrugated Vinyl (RCV)

Rigid Corrugated Vinyl (RCV) inserts are made from rigid vinyl extrusion with a corrugated surface to improve slip resistance in demanding environments. They are UV-stabilized for color retention and are available in several standard colors from the manufacturer.

(1)
Black

(7)
Terra Cotta

(289)
Pearl Gray

(374)
Ash Brown

(385)
Beige Desert

Tread Insert: Corrugated Aluminum (CA)

Corrugated Aluminum (CA) inserts are made from extruded aluminum alloy 6105-T5. The all-metal design features a corrugated surface that enhances slip resistance. Available in mill finish (natural aluminum color).

(405)
Mill Finish Aluminum

Tread Insert: Abrasive Aluminum (AA)

Abrasive Aluminum (AA) inserts are constructed from alloy 6105-T5 extruded aluminum with a factory-applied medium-grit abrasive for maximum slip resistance. These are ideal for entrances where grip and durability are essential. The aluminum is mill finish, and the abrasive strip is available in several standard colors.

(1)
Black

(4)
Brown

(5)
Gray

(7)
Terra Cotta

Tread Insert: Bristle Filament (BF)

Bristle Filament (BF) inserts use solution-dyed polypropylene fibers, blending 600/12-denier multifilament and 595/D1 monofilament for durability and cleaning performance. These waterproof, UV-resistant inserts are designed for excellent outdoor and indoor use in all climates.

(4)
Brown

(18)
Sand

(38)
Charcoal

(344)
Teal

(519)
Near Black

Description & Frames

Panel Construction: RG-300

The RG-300 entrance mat is constructed with box beam aluminum rails fastened to support rails spaced every 12 inches using vibration-proof fasteners. This robust design results in a mat depth of 1-1/2", allowing for increased drainage capacity. The tread inserts use 100% solution-dyed nylon fiber with a 1/4" finish pile height and a rigid backing at 33.8 oz/sq. yd.

This heavy-duty mat system is paired with the RGF-300 recessed frame. For proper fit, the manufacturer requires exact mat opening dimensions. Mats are fabricated 1/4" smaller than the opening. Sectioning may be necessary for mats over 48 square feet.

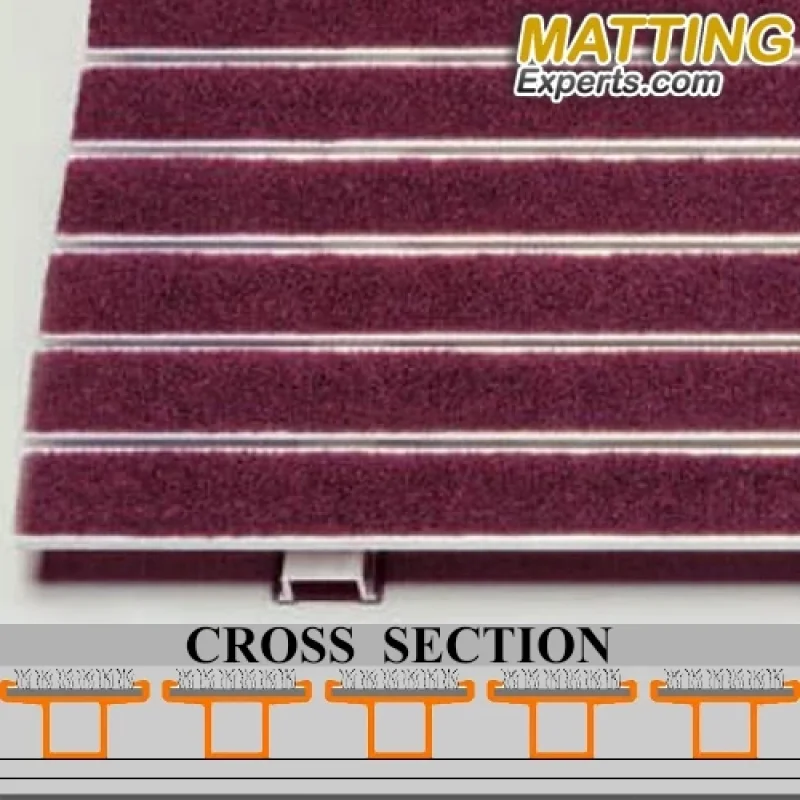

RG-300 Construction Diagram

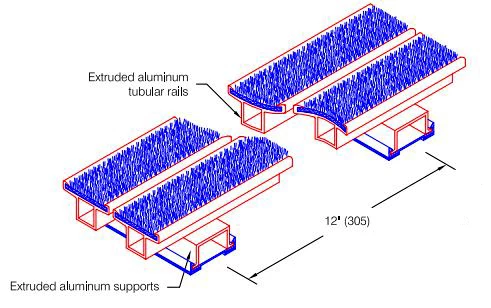

Rails and Support Detail – RG-300

Panel Construction: RG-400

The RG-400 model features an open-style construction with box beam rails attached to support rails spaced at 12" intervals using vibration-proof fasteners. The panel has a depth of 1-1/2", delivering maximum drainage capacity for high-traffic areas. Carpet tread inserts use 100% solution-dyed nylon with a 1/4" pile height, 33.8 oz/sq. yd, and are mounted on a rigid backing.

This heavy-duty configuration also uses the RGF-300 recessed frame. As with other models, Pawling requires exact mat opening measurements for proper sizing. Panels are fabricated 1/4" smaller than the opening to ensure a precise fit. For panels over 48 square feet, factory sectioning may apply.

RG-400 Construction Diagram

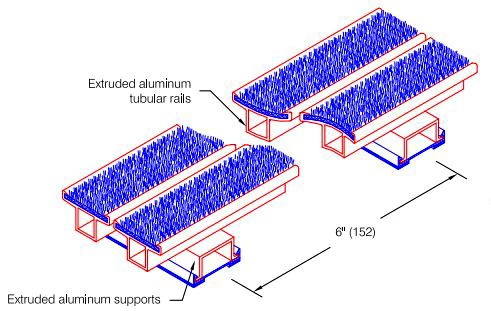

Rails and Support Detail – RG-400

Manufacturer: Pawling Corporation
