Description

RG-700 Series Stainless Steel Entrance Grates

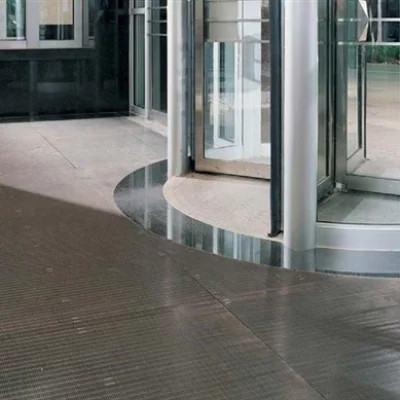

The Pawling RG-700 Series stainless steel entrance gratings are engineered for extreme durability and performance in high-traffic interior or exterior environments. Featuring a sculpted surface for maximum slip resistance, these metal entrance mats efficiently capture dirt and debris while providing a smooth roll-over experience—ideal for wheelchair, gurney, and cart traffic.

Available in three thicknesses—3/8", 5/8", and 1-1/8"—each model supports rolling loads up to 500 lbs. per wheel and features open construction to allow water, dirt, and debris to fall below the surface. The tight 3/16" spacing ensures a heel-proof and ADA-compliant walking surface. RG-700 series entrance grates are suitable for public buildings, universities, hospitals, retail centers, and industrial facilities.

• Model: RG-700, RG-710, RG-720
• Thickness: 3/8", 5/8", 1-1/8"
• Rail Material: Stainless Steel (Type 304 or optional Type 316L)
• Rail Finish: Satin
• Construction: Resistance-welded V-wires to support bars or fins
• Weight: 3.0 – 6.0 lbs. per sq. ft. (depending on thickness)
• Rolling Load Test: 500 lbs. per wheel

Key Features

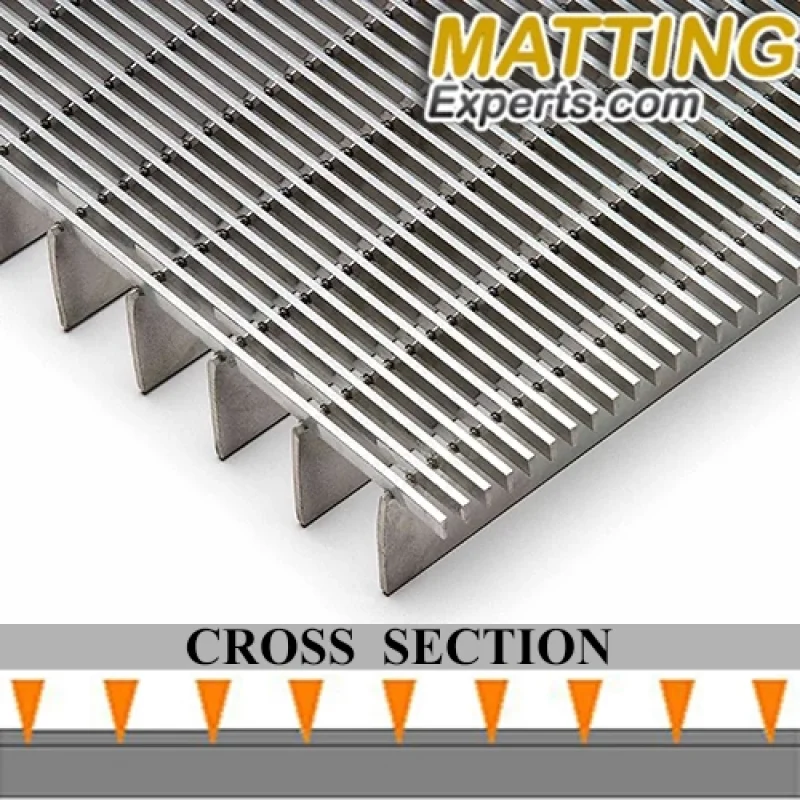

• Slip-Resistant Surface: Sculpted V-wire design increases traction and reduces slips.
• ADA & Heel-Proof: 3/16" spacing between treads ensures safety for all footwear types.
• All-Weather Durability: Stainless steel resists corrosion, ideal for outdoor and wet environments.
• Modern Appearance: Clean, architectural lines for a sleek, high-end aesthetic.
• Low Maintenance: Easy to lift, clean, and reinstall; reduces upkeep costs.

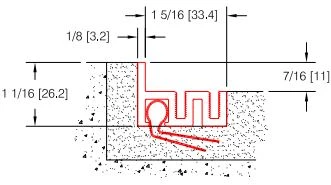

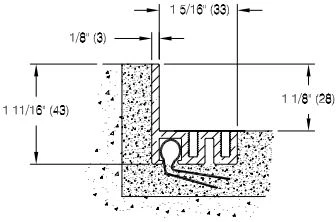

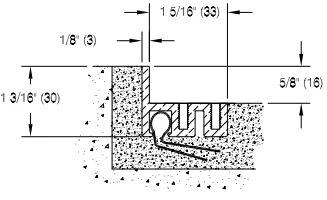

Panel Construction & Frame Options

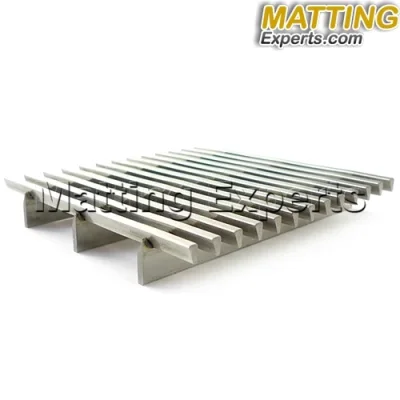

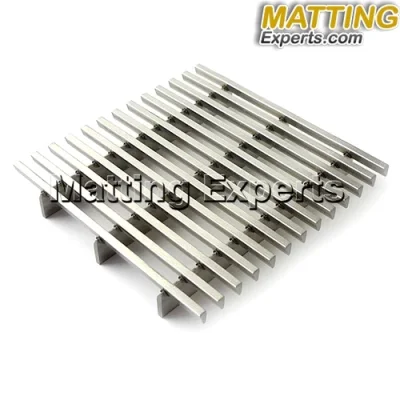

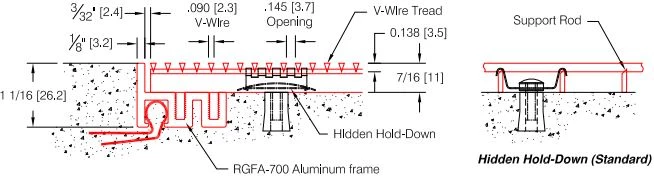

RG-700

• Height: 3/8"
• Open Area: 62%
• Construction: Stainless steel V-wires welded to stainless rods

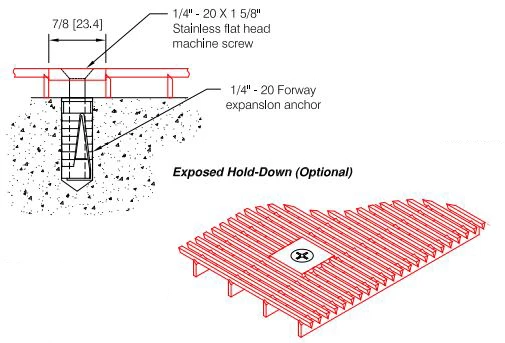

• Hold-Downs: Hidden standard (loose) or optional exposed factory-welded

Factory manufactures sections 3/16" smaller than the opening for proper fit.

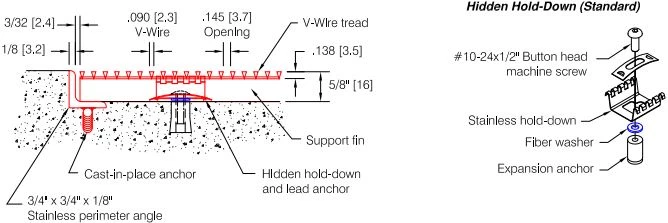

RG-710

• Height: 5/8"
• Open Area: 62%
• Construction: Stainless steel V-wires welded to stainless support fins

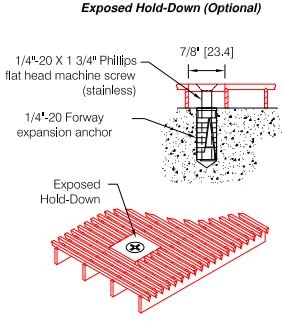

• Hold-Downs: Hidden standard (loose) or optional exposed factory-welded

Factory manufactures sections 3/16" smaller than the opening for proper fit.

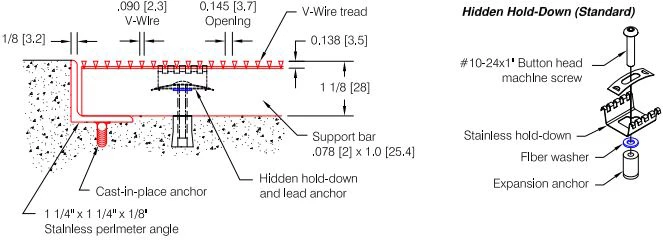

RG-720

• Height: 1-1/8"
• Open Area: 62%
• Construction: Stainless steel V-wires welded to stainless support bars

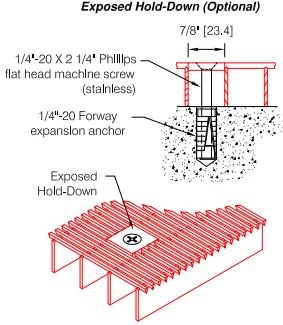

• Hold-Downs: Hidden standard (loose) or optional exposed factory-welded

Factory manufactures sections 3/16" smaller than the opening for proper fit. Custom designs available upon request.

Maintenance

To clean, simply lift the sections from the recess and remove dirt and debris from the pit. Ensure the surface is clean and level before replacing. Standard household cleaning products can be used. Stainless steel construction helps reduce maintenance costs over time.

Manufacturer: Pawling Corporation
