Pawling RGB-200 Bronze Alloy Entrance Grate

The RGB-200 is a premium bronze alloy entrance grate designed for high-traffic commercial spaces including hotels, hospitals, offices, convention centers, and recreation facilities. Constructed with durable T-shaped bronze rails and engineered for rolling loads up to 350 lbs. per wheel, this heavy-duty system combines timeless bronze aesthetics with unmatched structural integrity.

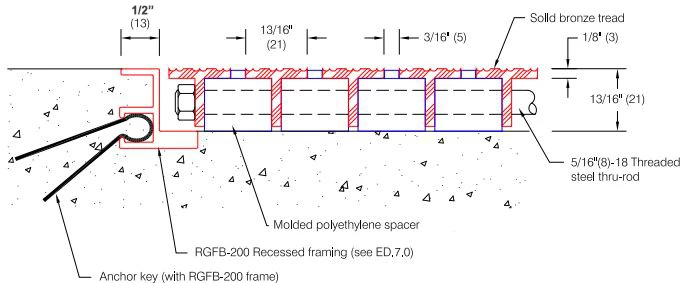

The 13/16" thick design allows for significant debris capture beneath the walking surface. The grate is assembled using extruded bronze alloy treads mounted onto 5/16" steel rods, with high-density polyethylene spacers between each rail. These spacers also extend beneath the panel, ensuring quiet, stable operation even under heavy loads. Each panel weighs approximately 7.25 lbs. per square foot, making this a true industrial-grade flooring solution with a clean architectural appearance.

• Model: RGB-200
• Thickness: 13/16"
• Rail Material: Bronze Alloy #385 (1/8" thick)
• Finish Options: Mill Finish (standard), Satin Finish

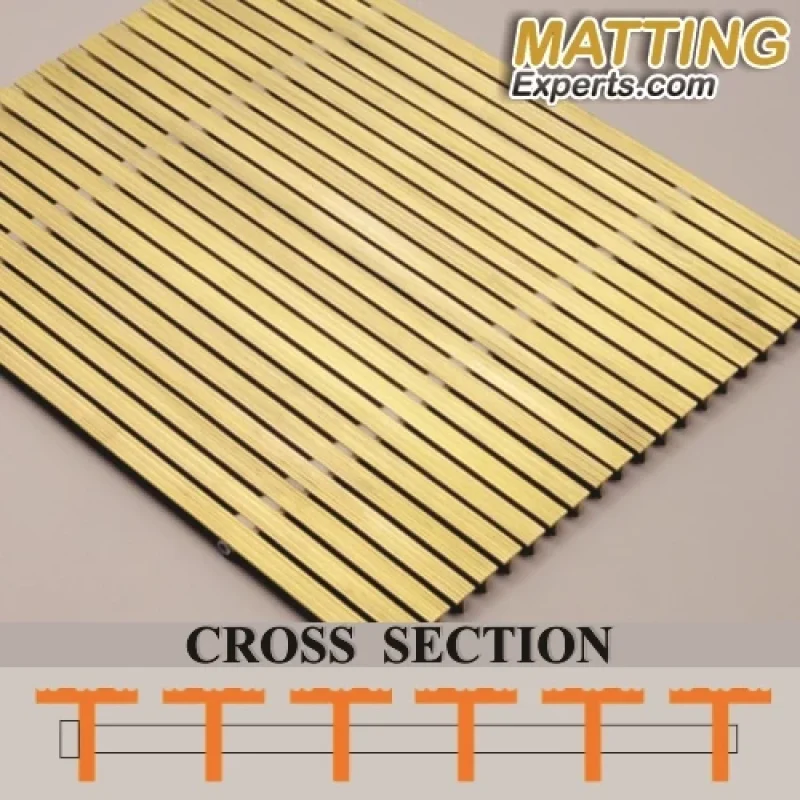

• Construction: T-shaped rails on steel rods with polyethylene spacers
• Panel Weight: 7.25 lbs. per sq ft
• Rolling Load Capacity: 350 lbs. per wheel

Key Features

• Premium Appearance: Bronze alloy construction offers a sophisticated, high-end look ideal for architectural entrances.
• Durable Design: Engineered for high-traffic areas with heavy rolling carts such as bellman, shopping, and medical carts.
• Debris Management: 13/16" depth captures dirt and moisture beneath the surface, reducing visible grime and maintenance frequency.
• Heel-Proof Safety: 3/16" spacing between treads provides safe foot travel for all footwear types while meeting ADA requirements.
• Custom Sizes: Panels up to 96" wide by 48" long are standard. Larger sizes may require sectioning due to weight and handling considerations.
• Indoor/Outdoor Use: All-weather capability makes it suitable for a wide range of climates and facilities.

Panel Construction

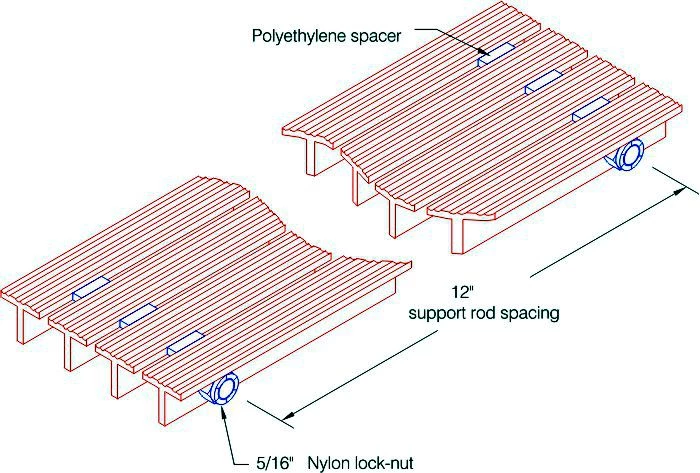

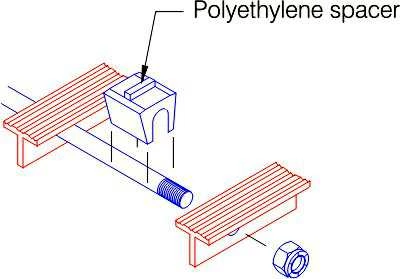

The RGB-200 is constructed using T-shaped extruded bronze alloy treads, mounted onto 5/16" steel rods spaced every 12 inches. High-density polyethylene spacers maintain proper spacing and provide acoustic isolation by allowing the panel to rest securely on the spacers rather than the treads.

Note: During construction, it is recommended to cover any poured recess with protective plywood to prevent damage. Before installing the panel, ensure the recess is clean and level for a flush and quiet fit.

Maintenance

To maintain optimal performance and appearance, lift the grate from the opening and clear debris from the recess. The panel may be cleaned with water, a firm brush, and general-purpose cleaning solutions. Always ensure the recess is flat and clean before reinstallation to avoid damage or noise.

Performance & Testing

• Flammability: Critical radiant flux ≥ 0.45 watts/m² per ASTM E648; meets NFPA 101 Class 1 Interior Floor Finish standards.
• Slip Resistance: Coefficient of friction ≥ 0.60 (ASTM D2047, tested wet).
• Rolling Load Test: Withstands 350 lbs./wheel for 2,500 passes using a 5" diameter, 2" wide polyurethane wheel.
• Dimensional Compatibility: Panels and frames should be ordered together from a single source to ensure precise fit.

Manufacturer: Pawling Corporation
